NT2 LAN

As of July 1, 2013, the NT2 LAN has been discontinued and this model is no longer being manufactured, sold or maintained.

The NT2 LAN was a dual-bay network drive with built-in UPnP-AV media server designed for two 3.5" hard disk drives. It came with a web based file browser and media player to manage and playback media files.

There is no new version available for this particular model. As an alternative, please consider the MyCloud Duo, which is based on a new and more advanced operating system. It's also designed to house two 3.5" hard disk drives and it comes with a web based file browser and many more web applications.






NT2 LAN

The ultra compact design of the NT2 makes this dual-bay network storage enclosure one of the smallest in the market, yet it still packs a punch when it comes to flexibility and performance. With its low power consumption and the built-in UPnP-AV media server, this is the ideal solution to house all your media files and at the same time make them available day and night to your UPnP clients throughout your home.

Features

  • UPnP-AV media server to stream media files on the local network
  • Web based file browser and media player to manage and playback media files
  • Web portal for remote access at home or on the road
  • RAID management for 2 drives (BIG or RAID 1 mirroring)
  • Low power consumption (~20W during operation with 2 x 250GB drives)
  • USB copy function for quick backups
  • Gigabit Ethernet connection
  • Compact design

Images

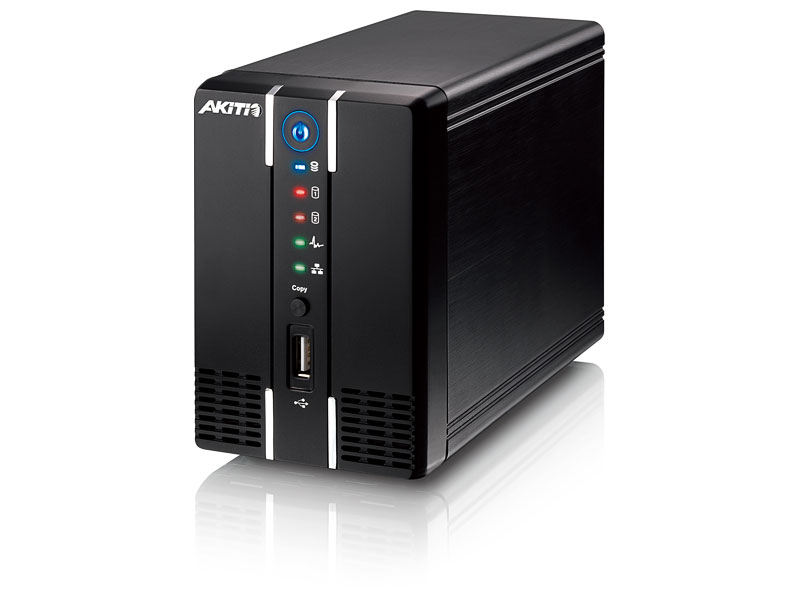

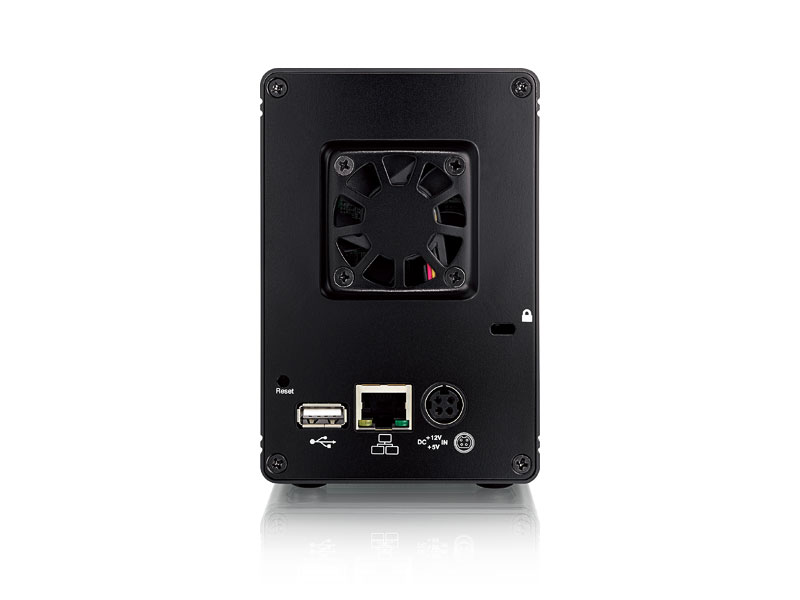

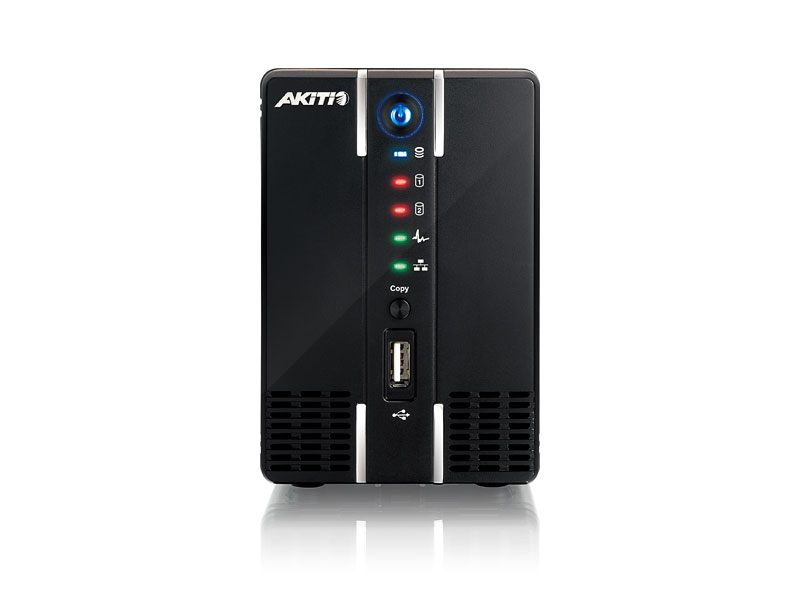

akitio nt2 lan angle akitio nt2 lan front akitio nt2 lan rear

Resources

Specifications

Model No. NT2 LAN
Part No. NT2-LN2U2OA1-AKT
Certifications
  • CE
  • FCC
Warranty
  • 2-year limited warranty
CPU
  • 367MHz
Memory
  • 128MB DDR2 SDRAM
  • 4MB NOR flash
Case material
  • High quality aluminum housing with plastic front
Internal hard drive(s)
  • Two 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 2TB per HDD
  • Supports large volumes in excess of 2TB
  • XFS file system
  • For RAID 1, two hard drives of identical capacity are recommended
Front I/O
  • 1 x Power button
  • 6 x Status LEDs (power, data access, HDD, system, network)
  • 1 x Copy button
  • 1 x USB 2.0 host connector
Rear I/O
  • 1 x Power receptacle
  • 1 x RJ45 connector (10/100/1000) with two LEDs for link and activity
  • 1 x USB 1.1 host connector
  • 1 x Reset button
LAN interface
  • 1000BASE-T IEEE 802.3ab
  • 100BASE-TX IEEE 802.3u
  • 10BASE-T IEEE 802.3
  • Auto MDIX
  • Automatic speed negotiation and downshift
  • Low power consumption; advanced power management
USB interface
  • 1 x USB 2.0 host for HDD storage expansion
  • 1 x USB 1.1 host for printers
RAID
  • JBOD
  • RAID 1
Web based GUI
  • Flash based GUI with built-in file browser and media player
Network services
  • Samba server
  • FTP server
  • DHCP server
  • UPnP-AV media server
  • iTunes music server
  • BitTorrent client
  • HTTP/FTP downloader
  • MyAKiTiO web portal (remote login)
Printer server
  • Yes (advanced printer server and printer spooling function)
System management
  • Firmware update
  • Network configuration
  • Disk management utility
  • Power management
  • System logs
  • Mail notification
  • Windows & Mac setup utility
Remote access
  • AKiTiO web portal at www.myakitio.com
System requirements (PC)
  • LAN: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. Gigabit Ethernet or PCI card)
System requirements (Mac)
  • LAN: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. Gigabit Ethernet or PCI card)
System environment
  • Operating Temperature: 5°C ~ 35°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.3A, 50-60Hz
  • Output: DC +5V/4.2A, +12V/3A
Fan noise level
  • 21 db(A)
Dimensions (LxWxH)
  • 7 inches x 4.8 inches x 3.2 inches
  • 17.7cm x 12.3cm x 8.1cm
Package contents
  • NT2 enclosure (HDDs not included)
  • Ethernet cable
  • Power adapter
  • Quick installation guide
  • Utility CD
Carton/Packing
  • Retail Box Size: 10.6 x 8.8 x 5.1 in. (27 x 22.4 x 13 cm)
  • Carton Size (6pcs per carton): 22.4 x 16.5 x 9.8 in. (57 x 42 x 25 cm)
