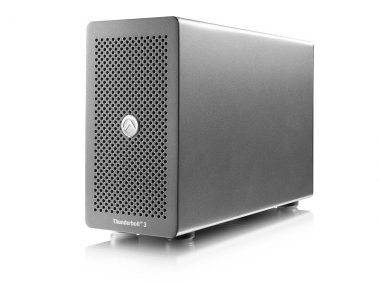

Node Lite

node-lite-angle-thumb
node-lite-angle-thumb Node Lite front Node Lite back Node Lite size
EOL

Thunderbolt 3
4K workflow
Thunderbolt 3 cable included
DisplayPort Output
thunderbolt-learn-more-button




Node Lite

node lite features

The Node Lite provides an additional PCIe slot for Thunderbolt 3 computers (e.g. laptop computers) where installing an internal expansion card is not an option and for systems where there is not enough space for more PCIe cards. The Thunderbolt 3 (USB-C) connection not only makes adding an external PCIe card easy but it also allows you to take the device with you to use on location and move it from one system to another. Installing and replacing the PCIe card is a simple matter of removing a few thumb screws and does not require any tools.

Features
  • Thunderbolt™ 3 for lightning fast transfer speeds up to 40 Gbps
  • Dedicated DisplayPort for additional monitor to expand the workspace
  • 2nd Thunderbolt port supports Thunderbolt 3, USB 3.1, and DisplayPort devices
  • 1 PCIe (x16) slot supporting half-length, full-height, double-width cards
  • 4 lane PCI Express 3.0 compliant interface
  • Removable back panel for double-width cards
  • Daisy-chain up to 6 Thunderbolt devices
  • Durable and rugged aluminum casing
  • No tools required for installation

4 Lane PCI Express 3.0 Compliant Interface

node lite interface

Supports PCIe Gen3 x4 cards

The PCIe (x16) slot accepts half-length, full-height, double-width cards and provides a maximum of 25W. The four PCIe Gen3 lanes and the Thunderbolt 3 interface are capable of transfer rates up to 40Gbps, providing enough bandwidth for both the internal PCIe card as well as any additional Thunderbolt devices in the daisy chain.

Thunderbolt Connectivity

node lite connectivity

Thunderbolt™ 3

Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device. For the first time, one computer port connects to Thunderbolt devices, every display, and billions of USB devices. A single cable now provides four times the data and twice the video bandwidth of any other cable, while also supplying power to bus-powered devices.

The Node Lite has two Thunderbolt 3 ports. The second port operates the same as a Thunderbolt 3 computer port by supporting Thunderbolt 3 (up to 5 daisy-chained), USB 3.1 (10 Gbps), and DisplayPort devices.

DisplayPort

The dedicated DisplayPort connector makes it easy to connect an additional monitor to extend your workspace. This video output capability requires a Thunderbolt 3 connection to the computer and will free up the second Thunderbolt 3 port for Thunderbolt 3 (up to 5 daisy-chained), USB 3.1 (10 Gbps), and DisplayPort devices.

Node Lite

  • T3NL-T3DIY-AKTU (without PCIe card)


  • CE

  • FCC

  • VCCI

  • Thunderbolt™ technology


  • 2-year limited warranty


  • High quality aluminum with metal chassis


  • 1 x PCIe card [See compatibility chart]

  • Supports half-length, full-height and double-width cards

  • PCIe (x16) slot provides a maximum of 25W

  • Not designed for graphics cards [Why not?]


  • 2 x Thunderbolt™ 3 (USB-C) ports

  • 1 x DisplayPort 1.2

  • 1 x internal PCIe (x16) slot with 4 lane PCI Express 3.0 interface


  • Thunderbolt 3 up to 40 Gbps

  • DisplayPort 1.2 (4K at 60 Hz)


  • Windows 7 (64-bit), Windows 10 (64-bit)

  • Computer with Thunderbolt™ 3 port


  • macOS 10.12.3 and later

  • Computer with Thunderbolt™ 3 port


  • Operating Temperature: 5°C ~ 35°C

  • Storage Temperature: -20°C ~ 60°C

  • Relative Humidity: 5% ~ 95% (non-condensing)


  • External power adapter (UL, cUL, CE, FCC, BSMI, TUV approved)

  • Input: AC 100-240V, 50Hz-60Hz

  • Output: DC +12V/6A


  • 23 dB(A)


  • 9.17 inches x 5.87 inches x 2.99 inches

  • 23.3 cm x 14.9 cm x 7.6 cm


  • Node Lite

  • Thunderbolt 3 USB-C cable

  • Power adapter

  • Setup guide


  • Retail Box Size: 12.4 x 12 x 4.9 in. (31.5 x 30.5 x 12.5 cm)

  • Carton Size (6pcs per carton): 20.8 x 13.2 x 13.9 in. (52.8 x 33.5 x 35.3 cm)

  • Gross Weight: 2.85 kg (retail box), 18.2 kg (carton)


  • PCIe card (driver) must be compatible with requirements for Thunderbolt technology (e.g. hot-plug support, recovery from sleep).

  • This device is not designed for graphics cards. The power and cooling is insufficient and regular graphics cards are too long for this case.

  • The DisplayPort does not support DP++. When using a DisplayPort to HDMI adapter, make sure to use an active adapter.

  • This product has components or design elements that are patented or patent pending.

vmix

This video looks at Thunderbolt 3 capture devices and how they can be used in live production. It takes a look at the AJA io4K+ and also how you can build you own with an Akitio Enclosure and a BlackMagic Design Duo 2. Read More...

Tim - vMix (June 6, 2018)
gtrusted

The AKiTiO Node Lite looks great and enables both Windows and macOS users to add external PCIe cards without sacrificing performance. Read More...

GTrusted (December 22, 2017)



IMPORTANT

Your PC may need updates for the Thunderbolt 3 ports to function properly.
For more information go to https://thunderbolttechnology.net/updates.

Compatibility

  • This product is not designed for graphics cards
  • This product does not support full-length PCIe cards
