NT2 U31C

akitio-nt2-u31c-angle-thumb
akitio-nt2-u31c-angle-thumb NT2 U31C front NT2 U31C back NT2 U31C size

USB 3.1 10G
USB Type-C connector
Hardware RAID controller

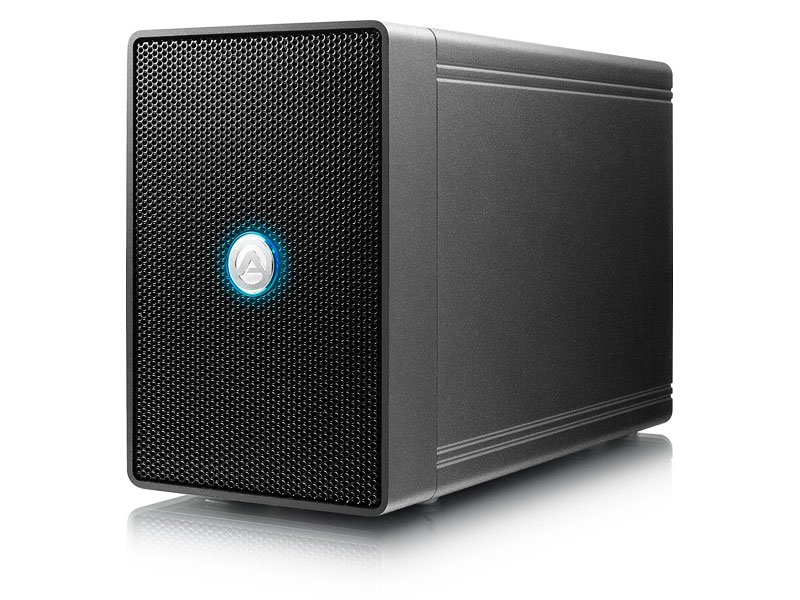

NT2 U31C

Designed to house two 3.5” SATA drives, this compact RAID storage enclosure makes it easy to either increase your storage capacity, backup your data or create a high-performance storage volume for video editing. The USB 3.1 Gen 2 interface assures super-fast transfer rates of up to 10Gbps and with the USB-C connector, the NT2 U31C is compatible with USB 3.1 as well as Thunderbolt 3 computers.

Features
  • Configurable hardware RAID controller (Non-RAID, RAID 0, RAID 1, SPAN)
  • SuperSpeed USB 10Gbps (USB 3.1 Gen 2) interface
  • Compatible with Thunderbolt 3 and USB Type-C computers
  • Supports Universal Attached SCSI Protocol (UASP)
  • Backwards compatible with USB 3.0 and USB 2.0
  • Extremely compact dual-bay design for two 3.5" drives
  • Active cooling fan
  • Security lock slot

SuperSpeed USB 10Gbps (USB 3.1 Gen 2)

By incorporating the latest SuperSpeed USB 10Gbps (USB 3.1 Gen 2) technology, the NT2 U31C is able to deliver up to twice the speed of the USB 3.1 Gen 1 and the older USB 3.0 devices. The USB-C connection is compatible with both USB 3.1 and Thunderbolt 3 computers. At the same time, when using the included USB-C to USB Type A adapter cable, the device is still backwards compatible with the widely used USB 3.0 and even USB 2.0 technology.

NT2 U31C transfer rates

Compact Dual-Bay Design

This dual-bay storage enclosure is designed to house up to two 3.5-inch SATA drives with the option to create a RAID set according to your own preferences. The small footprint makes this the ideal storage expansion for your crowded desktop.

Dual-Bay RAID Enclosure

Hardware RAID Controller

Utilizing the built-in hardware RAID controller, you can mirror the drives as a reliable backup for your important data, stripe the drives for optimal disk speeds or you can combine the drives for a large storage volume. Setting it to Non-RAID, the drives can be seen and managed as two individual disks.

Hardware RAID controller

Benchmark

Results will vary depending on the test environment and the drives but in order to really experience the faster transfer rates of the USB 3.1 Gen 2 interface at speeds of up to 10Gbps, it's necessary to install two SSDs and create a striped RAID set.

For traditional 3.5" hard disk drives, the transfer rate is limited by the disk itself. Depending on the RPM, the maximum disk speed is around 100-200 MB/s. Even when using RAID 0, the transfer rate is limited by the disk speed to around 400 MB/s, no matter if the device is connected to a USB 3.0 computer at 5Gbps or a USB 3.1 Gen 2 computer at 10Gbps.

Benchmark results for HDDs

Even though the NT2 U31C storage enclosure is not designed for the smaller 2.5" drives, it's still possible to install and use SSDs with a 2.5" to 3.5" drive adapter like the Neutrino Bridge for example.

When the device is connected to a USB 3.0 computer at 5Gbps, the transfer rate is limited by the USB interface to around 400 MB/s. When it's connected to a USB 3.1 Gen 2 computer or a Thunderbolt 3 computer, the SSDs can run at full SATA 6Gb/s speed and deliver around 500 MB/s or around 800-900 MB/s when striped in a RAID 0 set.

Benchmark results for SSDs

NT2 U3.1C
NT2C-U31AA

  • CE

  • FCC

  • VCCI

  • RCM

  • BSMI


  • 2-year limited warranty


  • High quality aluminum housing


  • Up to two 3.5" SATA hard disk drives

  • Capacity 80GB - 12TB per HDD

  • For RAID 0 & 1, two hard drives of identical capacity are recommended


  • Non-RAID

  • RAID 0 striping

  • RAID 1 mirroring

  • SPAN


  • 1x USB-C port supporting USB 3.1 Gen 2 (backwards compatible with USB 3.0 and 2.0)


  • USB 3.1 Gen 2 up to 10Gbps

  • USB 3.1 Gen 1 up to 5Gbps


  • Windows 7 or above

  • Computer with USB Type-C connector or otherwise the USB-C to USB Type A adapter cable is required


  • macOS 10.12.4 or above

  • Computer with USB Type-C connector or otherwise the USB-C to USB Type A adapter cable is required


  • Operating Temperature: 5°C ~ 35°C

  • Storage Temperature: -20°C ~ 60°C

  • Relative Humidity: 5% ~ 95% (non-condensing)


  • External power supply (UL, cUL, CE, TUV approved)

  • Input: AC 100-240V, 50-60Hz

  • Output: DC +12V/3A


  • 10.8 dB(A)


  • 7.2 inches x 4.8 inches x 3.2 inches

  • 18.2cm x 12.3cm x 8.1cm


  • NT2 U31C storage enclosure

  • USB 3.1 Gen 2 cable (1m, USB-C to USB-C)

  • USB 3.1 Gen 2 cable (1m, USB-C to USB Type A)

  • Power adapter

  • Setup guide


  • Retail Box Size: 10.6 x 8.8 x 5.1 in. (27 x 22.4 x 13 cm)

  • Carton Size (6pcs per carton): 22.4 x 16.5 x 9.8 in. (57 x 42 x 25 cm)

  • Gross Weight: 1.64 kg (retail box), 10.75 kg (carton)


  • This product is backwards compatible with USB 3.0 and USB 2.0 but for best performance, a USB 3.1 Gen 2 host is recommended. The USB-C to USB Type-A adapter cable is included.

  • This product is not compatible with the Surface Pro 3.

pcworld

Akitio more or less nails it with the design of this box in terms of leveraging a pair of 3.5-inch hard drives. It’s solidly constructed, installation and RAID configuration are super-easy, and it performs well. Great stuff. Read More...

Jon L. Jacobi - PCWorld (November 28, 2018)
