FD-2500 U3

As of September 1, 2016, the FD-2500 U3 has been discontinued and this model is no longer being manufactured, sold or maintained.

The FD-2500 U3 was a slim, compact and portable hard drive enclosure with a durable high quality ABS plastic exterior designed for a single 2.5" drive up to 9.5mm. It featured a USB 3.0 SuperSpeed connection.

This model has been replaced by the Neutrino U3.1, an aluminum enclosure with a faster USB 3.1 Gen 2 interface up to 10Gbps.






FD-2500 U3

The FD-2500 is a slim, compact and portable hard drive enclosure with a durable high quality ABS plastic exterior that is small enough to fit into your pocket. The screwless design makes the hard drive installation a breeze and the bus power set up makes powering the unit quick and easy.

Features

  • USB 3.0 SuperSpeed interface
  • USB 2.0 backwards compatible
  • Designed for 2.5" drives up to 9.5mm
  • Durable, compact and portable
  • Screwless installation
  • Fanless

Images

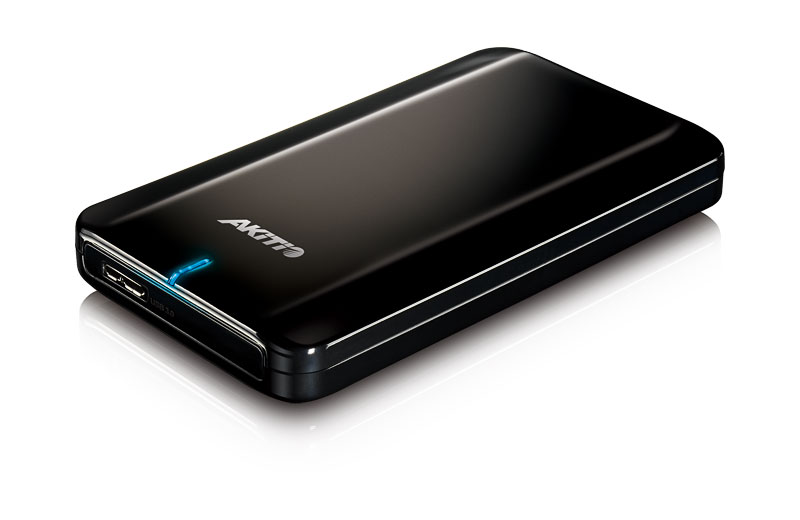

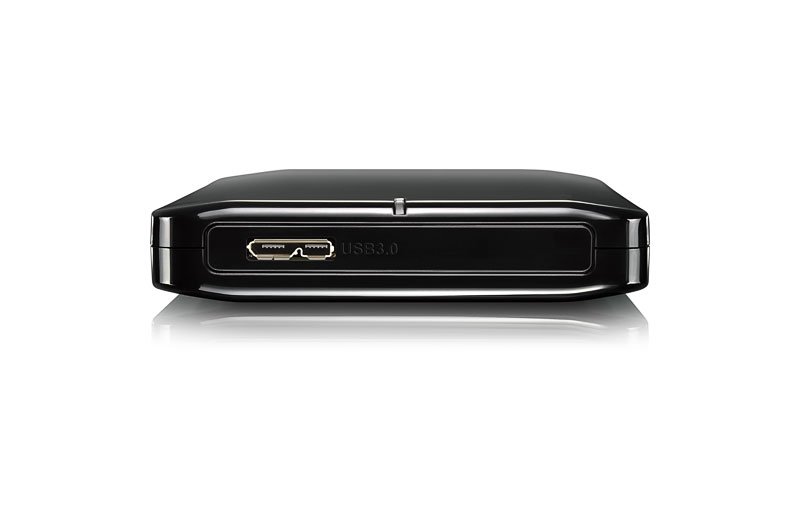

akitio fd2500 u3  akitio fd2500 u3 rear

Resources

Specifications

Model No. FD-2500 U3
Part No. FD2-U3AA-AKT
Certifications
  • CE
  • FCC
  • BSMI
  • VCCI
Warranty
  • 2-year limited warranty
Case material
  • Durable high quality ABS plastic
Application
  • 2.5" SATA-I, SATA-II or SATA-III hard drive
  • Capacity 20GB - 1TB
  • Height 7mm - 9.5mm
Interface/Ports
  • 1x Mini USB 3.0 SuperSpeed port (backwards compatible with USB 2.0)
Data transfer
  • USB 3.0 up to 5Gbps (625MB/s)
  • USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)
  • USB 3.0: Windows XP or above
  • USB 2.0: Windows XP or above
  • Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
System requirements (Mac)
  • USB 3.0: Mac OS 10.7 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 35°C
  • Storage Temperature: -20°C ~ 60°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Power supply
  • Bus Power 5V/900mA (host computer has to provide sufficient USB bus power)
Dimensions (LxWxH)
  • 5.0 inches x 3.0 inches x 0.6 inches
  • 12.8cm x 7.7cm x 1.6cm
Package contents
  • FD-2500 enclosure (HDD not included)
  • Rubber sleeve for protection
  • USB 3.0 cable
  • User manual
Carton/Packing
  • Retail Box Size: 9 x 6.3 x 1.6 in. (23 x 16 x 4 cm)
  • Carton Size (20pcs per carton): 17.3 x 13.4 x 10.6 in. (44 x 34 x 27 cm)
